Computing likelihood value

Hide code cell source


import seaborn as sns

sns.set_theme(
    rc={"axes.spines.top": False, "axes.spines.right": False, "figure.autolayout": True},
    style="ticks",
)

Computing likelihood value#

Given a successful installation of MFLike data (see tutorial), we can now retrieve likelihood or \(\chi^2\) value given the set of parameter values. First, let’s load the MFLike instance

%run tutorial_loading.ipynb

We can retrieve informations related to likelihood(s) as follow

loglikes, derived = model.loglikes()
print(f"log-likelihood value = {loglikes}")

log-likelihood value = [-3586.61673018]

We can directly catch the value returned by logp function from MFLike likelihood

logp = mflike.logp(**fg_params, **nuisance_params)
print(f"log-likelihood value = {logp}")
print(f"Χ² value = {-2 * (logp - mflike.logp_const)}")

log-likelihood value = -3586.6167301770643
Χ² value = 3096.869255634852

Finally, we can also use the evaluate sampler that evaluates the log-likelihood at a given reference point

from cobaya.run import run

info["sampler"] = {"evaluate": None}
updated_info, products = run(info)

[camb] `camb` module loaded successfully from C:\Work\Dist\git\camb\camb
[mflike.mflike] Number of bins used: 3087
[mflike.mflike] Initialized!
[evaluate] *WARNING* No sampled parameters requested! This will fail for non-mock samplers.
[evaluate] Initialized!
[evaluate] Looking for a reference point with non-zero prior.
[evaluate] Reference point:

[evaluate] Evaluating prior and likelihoods...
[evaluate] log-posterior  = -3586.62
[evaluate] log-prior      = 0
[evaluate]    logprior_0 = 0
[evaluate] log-likelihood = -3586.62
[evaluate]    chi2_mflike.MFLike = 7173.23
[evaluate] Derived params:

Using the MFLike likelihood without cobaya#

The MFLike likelihood can also be used independently of cobaya. The principle is the same as in this cobaya’s example. First we need to instantiate an MFLike object

from mflike import TTTEEE, BandpowerForeground

ext_mflike = TTTEEE(mflike_input_file, packages_path=packages_path)
foreground_model = BandpowerForeground(ext_mflike.get_fg_requirements())

[mflike] Number of bins used: 3087
[mflike] Initialized!

The \(C_\ell\) dictionary can be retrieved from an independant program or an independant computation. Here we will use CAMB to compute the \(C_\ell\) from a cosmological model set by the cosmo_params

camb_cosmo = cosmo_params | minimal_settings
camb_cosmo.update(lmax=ext_mflike.lmax_theory + 1)

pars = camb.set_params(**camb_cosmo)
results = camb.get_results(pars)
powers = results.get_cmb_power_spectra(pars, CMB_unit="muK")
dls_camb = {k: powers["total"][:, v] for k, v in {"tt": 0, "ee": 1, "te": 3, "bb": 2}.items()}

We also get the \(D_\ell\) from cobaya (see tutorial)

dls_cobaya = model.theory["camb"].get_Cl(ell_factor=True)

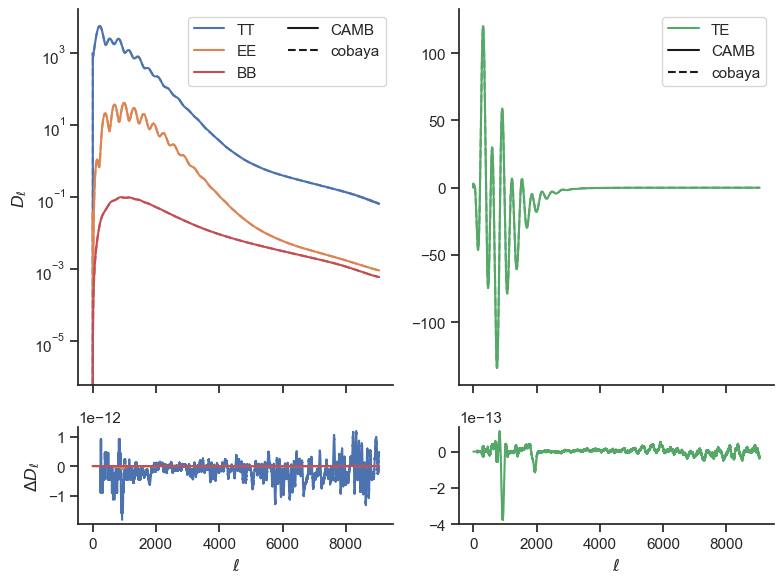

Let’s plot \(D_\ell\) and let’s compare them to the ones from cobaya

import matplotlib.pyplot as plt

fig = plt.figure(figsize=(8, 6))
gs = fig.add_gridspec(4, 2)
axes = {
    "tt": [fig.add_subplot(gs[:3, 0], xticklabels=[]), fig.add_subplot(gs[-1, 0])],
    "te": [fig.add_subplot(gs[:3, 1], xticklabels=[]), fig.add_subplot(gs[-1, 1])],
}


ell = dls_cobaya["ell"]
for i, mode in enumerate(dls_camb):
    plot = axes["te"][0].plot if mode == "te" else axes["tt"][0].semilogy
    plot(ell, dls_camb[mode], f"-C{i}", label=mode.upper())
    plot(ell, dls_cobaya[mode], f"--C{i}")
    ax = axes["te"][1] if mode == "te" else axes["tt"][1]
    ax.plot(ell, dls_camb[mode] - dls_cobaya[mode], f"-C{i}")

axes["tt"][0].set_ylabel(r"$D_\ell$")
axes["tt"][1].set_ylabel(r"$\Delta D_\ell$")
for mode in axes:
    axes[mode][1].set_xlabel(r"$\ell$")
    axes[mode][0].plot([], [], "-k", label="CAMB")
    axes[mode][0].plot([], [], "--k", label="cobaya")
    axes[mode][0].legend(ncol=1 if mode == "te" else 2)
../_images/c14e1e1a6a44c0936aef3df45745a900473e850668fcd45bb168dc1a030d28a2.png

To compute the log-likelihood value, we can use the loglike function which takes as parameters an theoretical \(C_\ell\) dictionary and the nuisance parameter values. We can inject these \(D_\ell\) into the loglike function to get the corresponding log-likelihood value

fg_dict = foreground_model.get_foreground_model_totals(**fg_params)
loglike = ext_mflike.loglike(dls_camb, fg_dict, **nuisance_params)
print(f"log-likelihood value = {loglike}")
print(f"Χ² value = {-2 * (loglike - ext_mflike.logp_const)}")

log-likelihood value = -3586.6167301770856
Χ² value = 3096.8692556348947

This way, MFLike likelihood is almost agnostic with respect to the sampler and can be used by others programs than cobaya as far as these programs provide \(D_\ell\) spectra.
